General Description

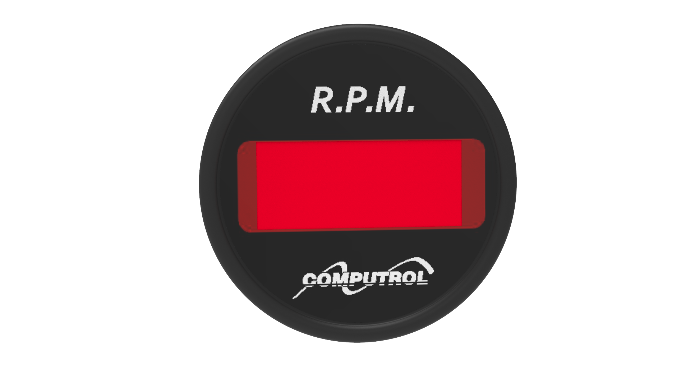

The Digital Tachometer allows measuring the frequency present at the output of alternators in combustion engines and displaying them as RPM at the output.
Its input circuits, specially designed for this function, also allow the detection of signals from various sources: proximity sensors, switches and/or frequency outputs from special circuits such as PLCs, etc..
- 4 red digits of 14.2 mm.
- Calibration system at 1000 rpm.
- Detection of different signals.
- Robustness for mobile or fixed application use
Technical Specifications
| Minimum dimensions (mm): Ø90x30 |
Measurement range: 400 - 4000 rpm |
Power supply: 8 - 16 Vcc |
Input signal amplitude 0.5 - 12 Vca |
Input for reflection reduction at rest: 12 Vcc |
